Test Patterns

Streamline Connectivity and Calibration.

NDI Test Patterns is a tool designed to facilitate precise audio and video calibration on NDI-enabled devices within your network.

With a range of test patterns and audio tones, this tool ensures accurate color properties and optimal sound levels.

Download NDI Tools here.

---

Accessing NDI Test Patterns

Install NDI Tools and run NDI Test Patterns from the NDI launcher or your applications list.

---

Immediate NDI Signal Sharing

Upon launching, NDI Test Patterns will instantly share an NDI signal across your network, viewable on other NDI-enabled devices using software like Studio Monitor.

---

Viewing the NDI Signal

Right-click on the NDI Studio Monitor tool, select the device's name and choose Test Patterns to receive the signal from NDI Test Patterns.

---

Test Pattern Variety

Explore a variety of test patterns by scrolling down the page and selecting the one that best suits your calibration needs.

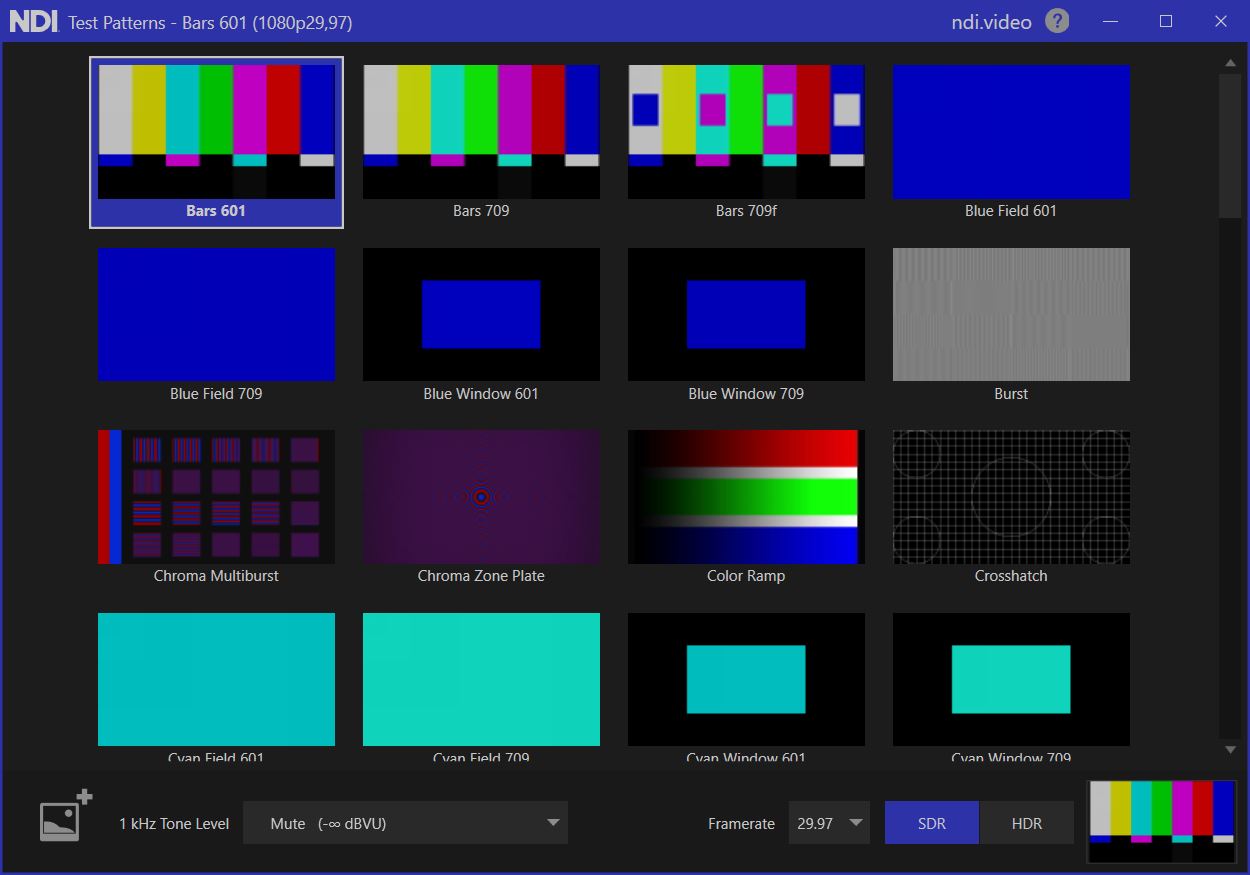

Test Patterns library (HDR options to be released with NDI 6).

---

Custom Image Support

Click the plus button at the bottom left of the screen to add custom images to the list of patterns in NDI Test Patterns.

NDI Test Patterns supports images with embedded alpha, allowing you to load most 32-bit image file formats and use them as sources for overlays in your program.

---

Audio Calibration

Enable a one-kilohertz tone accompanying the NDI test pattern signal to test your audio equipment. Choose from various decibel levels to suit your audio calibration requirements.
