  1. Using NDI
  2. NDI Tools
  3. NDI Tools for Windows

Remote

Securely connect with multiple remote contributors.

Was this helpful?

NDI Remote is a tool that facilitates seamless connections with multiple remote contributors by simply sharing a link. This application enables receiving video and audio over the internet, transforming your device into an NDI video feed receiver.

Download NDI Tools .


Accessing NDI Remote

and run NDI Remote from the or your applications list.


Sharing Video

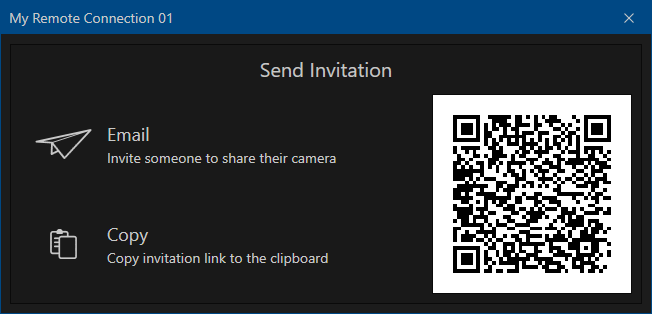

Method 1: Send Invitation

On the Send Invitation tab, enable a remote connection from the available list (up to eight connections). You should assign a specific name to the remote connection.

Then, click the share icon (paper plane icon) on the right side of the desired connection to open up a pop-up menu. This pop-up menu will present various methods to share an invitation:

  • Via email.

  • By sharing a unique QR code attributed to that connection.

  • By sharing a unique URL.

The receiver will only need to open the link in a web browser on the remote device, grant access to the camera and microphone, and the video will begin being shared.


Method 2: Initiating from the Remote Device

  • Your hardware system camera

  • A feed of your computer's screen

You'll be prompted to provide access to your computer's camera and microphone. If you accept, you'll start seeing a feed from your camera.

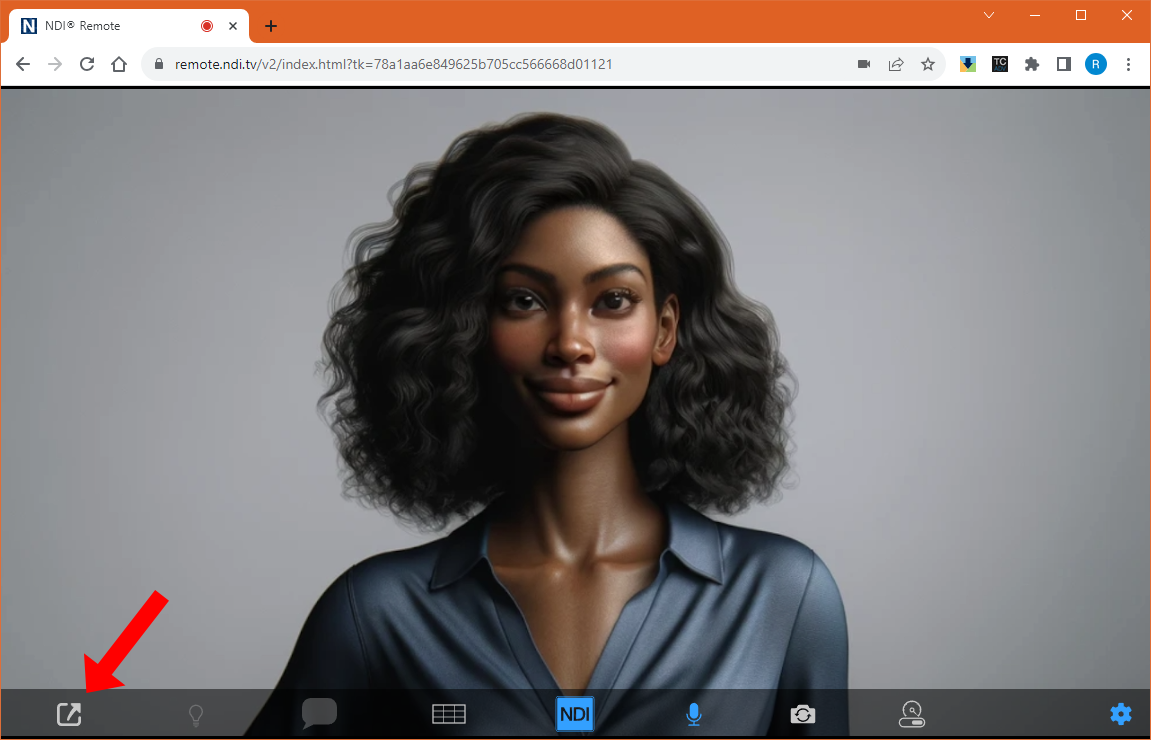

A menu will also show up. By clicking the leftmost icon, you'll be able to name your feed so that others can identify it. You'll also be able to share it by clicking the Share button.

The person using the NDI Remote tool can view and manage the incoming connection on the Received Invitations tab. The NDI Remote connection is now generating an NDI source, which any NDI-enabled application in your local area network can receive.


Using Turn Relay Server (Optional)

A TURN (Traversal Using Relays around NAT) server is a network entity that facilitates the relaying of network traffic. When two devices are unable to establish a direct connection due to or firewall restrictions, they use a TURN server as an intermediary. The TURN server temporarily stores the data from the sending device and forwards it to the receiving device.

TURN servers are particularly important in and interactive video conferencing applications that use protocols like .

This process helps in overcoming the limitations imposed by NAT, which can change the public IP address and port number of a packet and make it difficult for the receiving device to interpret where the data originally came from

With NDI Remote, a custom TURN server can be specified by the user:

  1. Go to the My Connections tab and click the gear icon to open the Turn Relay Server options.

  2. Activate the Turn Relay Server by checking the corresponding box.

  3. Enter the Turn Server's URL and port provided by your system administrator.

  4. Optionally, enter a username and password.

  5. Click Apply to accept the Turn Server configuration.

Visit the . In there, you'll be able to select different sources to share:

⚒️
NDI Remote page
here
Install NDI Tools
NDI launcher
Screenshot of NDI Remote (Windows)
Screenshot of NDI Remote (Windows)

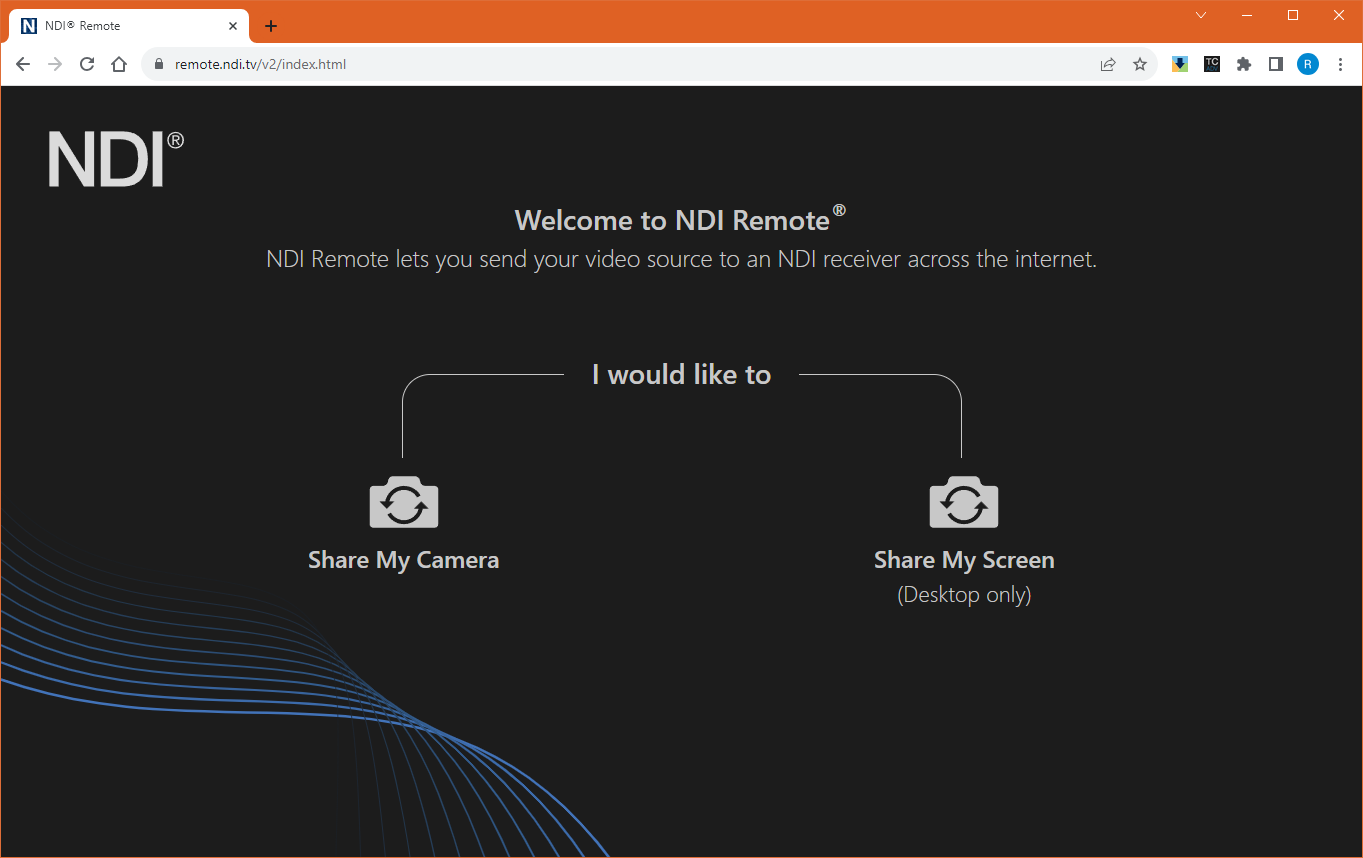

Screenshot of NDI Remote webpage
Screenshot of the NDI Remote webpage
Screenshot of NDI Remote (Windows)
