  1. Developing with NDI
  2. Utilities
  3. Bridge Service

API

Last updated 2 months ago

Was this helpful?

All API calls use GET and or POST requests to retrieve and set values. Every response from a GET or POST request use the same structure. The response is in JSON format and includes a true / false field to indicate success, an error field to provide more detailed information if there is an error, and a content field that contains either the current value of the setting or a message detailing what action the request performed.

{"success":true,"error":null,"content":0}

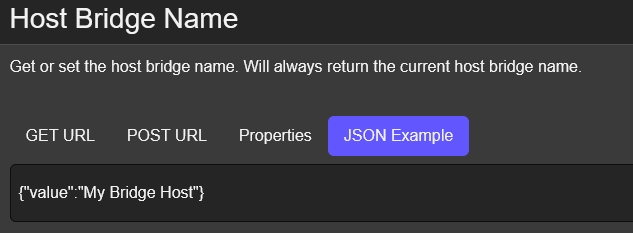

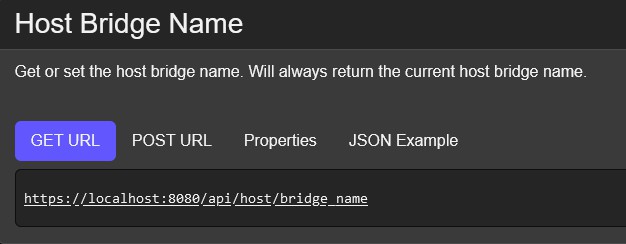

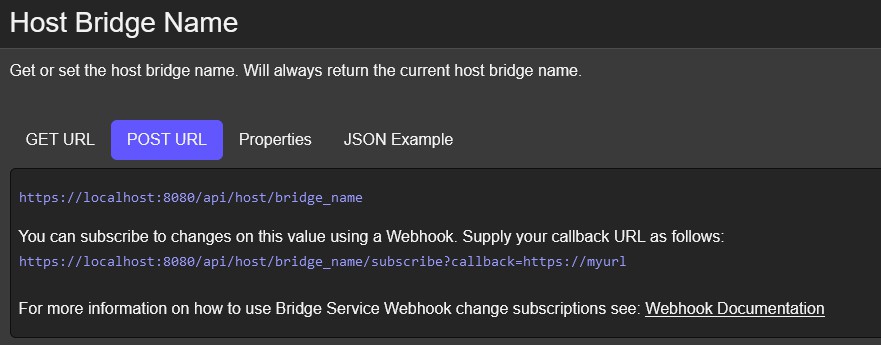

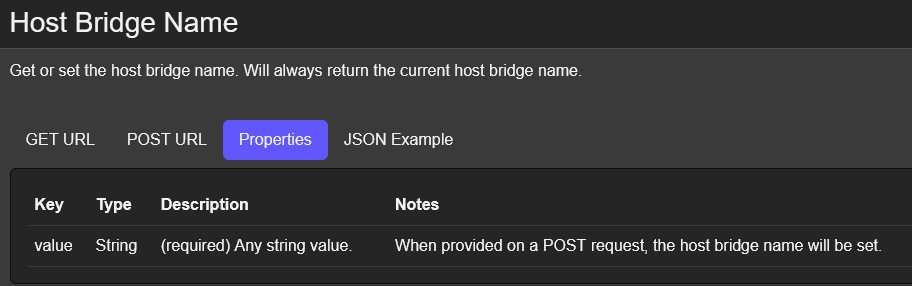

In addition to this document, the web interface provides a full list of API calls and their use cases.

API Calls Using SSL

When SSL is enabled you must include a valid API key in the header of your request. It key in the header should be named x-api-key and the value should be the API key you issued starting with NDI-. Here is some example C# code for sending GET and POST requests with SSL where API KEY is a string value containing the NDI- prefixed key:

static async Task<string> PostAsync(string uri, Dictionary<string, string> values)
{
var client = new HttpClient(); client.DefaultRequestHeaders.Add("x-api-key", API_KEY);
var content = JsonContent.Create(values);
var result = await client.PostAsync(uri, content); return await result.Content.ReadAsStringAsync();
}
static async Task<string> GetAsync(string uri)
{
var client = new HttpClient(); client.DefaultRequestHeaders.Add("x-api-key", API_KEY);
var result = await client.GetAsync(uri);
return await result.Content.ReadAsStringAsync();
}

The following subsections detail each API endpoint available in NDI Bridge Service:

Auto Start

Get or set whether to start join or host on service start-up. Will always return the latest auto start value. The service must be restarted to reflect this change.

Key
Type
Description
Notes

value

String

(required) 0, 1 or 2 where 0 = None, 1

= Host, and 2 = Join

If provided on a

POST request, the Bridge Service auto start mode will be

set.

GET URL: http://localhost:8080/api/auto_start

POST URL: http://localhost:8080/api/auto_start

EXAMPLE POST CONTENT: {"value":"0"}

GPU List

Gets the list of available GPUs.

GET URL: http://localhost:8080/api/gpu_list

Host Bandwidth

Get the current host bandwidth message.

GET URL: http://localhost:8080/api/host/bandwidth_message

Host Bridge Name

Get or set the host bridge name. Will always return the latest host bridge name.

Key
Type
Description
Notes

value

String

(required) Any string value.

If provided on a

POST request, the host bridge name

will be set.

GET URL: http://localhost:8080/api/host/bridge_name

POST URL: http://localhost:8080/api/host/bridge_name

EXAMPLE POST CONTENT: {"value":"My Bridge Host"}

Host Buffer

Get or set the host buffer value. Will always return the latest host buffer value.

Key
Type

value

String

(optional) A buffer length value from 0-

3000.

Buffer length value

in the range of 0-3000. If pro- vided on a POST request, the host buffer length value

will be set.

GET URL: http://localhost:8080/api/host/buffer

POST URL: http://localhost:8080/api/host/buffer

EXAMPLE POST CONTENT: {"value":"0"}

Host Clear Encryption Key

Clears the host encryption key on POST.

POST URL: http://localhost:8080/api/host/clear_encryption_key

EXAMPLE POST CONTENT: {}

Host GPU Limit

Gets a boolean to represent if the host has reached its GPU encoding limits or not.

GET URL: http://localhost:8080/api/host/gpu_limit

Host Groups

Get or set the host groups to share. Will always return the latest host groups.

Key
Type
Description
Notes

value

String

(required) A comma delineated list of

group names.

If provided on a

POST request, the host groups will be

set.

GET URL: http://localhost:8080/api/host/groups

POST URL: http://localhost:8080/api/host/groups

EXAMPLE POST CONTENT: {"value":"public,test group"}

Host HX Encoder

Get or set the host HX encoder. Will always return the latest host HX encoder value.

Key
Type
Description
Notes

value

String

(required) 0 or 1 where 0 = h.264, 1 =

HEVC (h.265)

If provided on a

POST request, the host HX encoder

type will be set.

GET URL: http://localhost:8080/api/host/hx_encoder

POST URL: http://localhost:8080/api/host/hx_encoder

EXAMPLE POST CONTENT: {"value":"0"}

Host HX GPU

Get or set the host HX GPU. Will always return the latest host HX GPU.

Key
Type
Description
Notes

value

String

(required) The name of the GPU. Use

’Auto’ to automatically select a GPU.

If provided on a

POST request, the host HX GPU will

be set.

GET URL: http://localhost:8080/api/host/hx_gpu

POST URL: http://localhost:8080/api/host/hx_gpu

EXAMPLE POST CONTENT: {"value":"Auto"}

Host HX NDI4 Compatibility Mode

Get or set the host HX NDI4 compatibility mode. Will always return the latest host HX NDI4 compatibility mode value.

Key
Type
Description
Notes

value

String

(required) A boolean to enable or dis-

able NDI4 compatibility mode.

If provided on a

POST request, the host HX NDI4 com- patibility mode will

be set.

GET URL: http://localhost:8080/api/host/hx_ndi4_compatibility_mode

POST URL: http://localhost:8080/api/host/hx_ndi4_compatibility_mode

EXAMPLE POST CONTENT: {"value":"false"}

Host HX Output

Get or set the host HX output. Will always return the latest host HX output value.

Key
Type
Description
Notes

value

String

(required) 0, 1, or 2 where 0 = NDI —

HX, 1 = NDI High Bandwidth, and 2

= Do Not Transcode

If provided on a

POST request, the host HX output

type will be set.

GET URL: http://localhost:8080/api/host/hx_output

POST URL: http://localhost:8080/api/host/hx_output

EXAMPLE POST CONTENT: {"value":"0"}

Host HX Quality

Get or set the host HX quality setting. Will always return the latest host HX quality setting value.

Key
Type
Description
Notes

value

String

(required) A value between 10 and 400

with 10 being the lowest quality.

If provided on a

POST request, the host HX quality

setting will be set.

GET URL: http://localhost:8080/api/host/hx_quality

POST URL: http://localhost:8080/api/host/hx_quality

EXAMPLE POST CONTENT: {"value":"100"}

Host Port

Get or set the host port value. Will always return the latest host port value.

Key
Type
Description
Notes

value

String

(required) Port number in the range of

1-65545.

Port number in the

range of 1-65545. If provided on a POST request, the host port value will

be set.

GET URL: http://localhost:8080/api/host/port

POST URL: http://localhost:8080/api/host/port

EXAMPLE POST CONTENT: {"value":"5990"}

Host Set Encryption Key

Sets the host’s encryption key on POST.

Key
Type
Description
Notes

value

String

(required) The encryption key string

value.

Returns success on

setting the encryp- tion key. Does not return the cur- rent encryption key

value.

POST URL: http://localhost:8080/api/host/set_encryption_key

EXAMPLE POST CONTENT: {"value":"some encryption key"}

Host Start

Starts the host and returns if the operation succeeded or not.

POST URL: http://localhost:8080/api/host/start

EXAMPLE POST CONTENT: {}

Host Status

Gets the current host status message.

GET URL: http://localhost:8080/api/host/status_message

Host Stop

Stops the host if the host was running. Returns if the operation succeeded or not.

POST URL: http://localhost:8080/api/host/stop

EXAMPLE POST CONTENT: {}

Is Running

Returns true if Bridge is running in Host or Join mode.

GET URL: http://localhost:8080/api/is_running

Join Bandwidth

Get the current join bandwidth message.

GET URL: http://localhost:8080/api/join/bandwidth_message

Join Bridge Name

Get or set the join bridge name. Will always return the latest join bridge name.

Key
Type
Description
Notes

value

String

(required) Any string value.

If provided on a

POST request, the join bridge name

will be set.

GET URL: http://localhost:8080/api/join/bridge_name

POST URL: http://localhost:8080/api/join/bridge_name

EXAMPLE POST CONTENT: {"value":"My Bridge Name"}

Join Buffer

Get or set the join buffer value. Will always return the latest join buffer value.

Key
Type
Description
Notes

value

String

(required) A buffer length value from

0-3000.

Buffer length value

in the range of 0-3000. If pro- vided on a POST request, the join buffer length value

will be set.

GET URL: http://localhost:8080/api/join/buffer

POST URL: http://localhost:8080/api/join/buffer

EXAMPLE POST CONTENT: {"value":"100"}

Join Clear Encryption Key

Clears the join encryption key when called.

POST URL: http://localhost:8080/api/join/clear_encryption_key E

XAMPLE POST CONTENT: {}

Join GPU Limit

Gets a boolean to represent if the join has reached its GPU encoding limits or not.

GET URL: http://localhost:8080/api/join/gpu_limit

Join Groups

Get or set the join groups to share. Will always return the latest join groups.

Key
Type
Description
Notes

value

String

(required) A comma delineated list of

group names.

If provided on a

POST request, the join groups will be

set.

GET URL: http://localhost:8080/api/join/groups

POST URL: http://localhost:8080/api/join/groups

EXAMPLE POST CONTENT: {"value":"pubic,test"}

Join HX Encoder

Get or set the join HX encoder. Will always return the latest join HX encoder value.

Key
Type
Description
Notes

value

String

(required) 0 or 1 where 0 = h.264, 1 =

HEVC (h.265)

If provided on a

POST request, the join HX encoder

type will be set.

GET URL: http://localhost:8080/api/join/hx_encoder

POST URL: http://localhost:8080/api/join/hx_encoder

EXAMPLE POST CONTENT: {"value":"0"}

Join HX GPU

Get or set the join HX GPU. Will always return the latest join HX GPU.

Key
Type
Description
Notes

value

String

(required) The name of the GPU. Use

’Auto’ to automatically select a GPU.

If provided on a

POST request, the join HX GPU will

be set.

GET URL: http://localhost:8080/api/join/hx_gpu

POST URL: http://localhost:8080/api/join/hx_gpu

EXAMPLE POST CONTENT: {"value":"Auto"}

Join HX NDI4 Compatibility Mode

Get or set the join HX NDI4 compatibility mode. Will always return the latest join HX NDI4 compatibility mode value.

Key
Type
Description
Notes

value

String

(required) A boolean to enable or dis-

able NDI4 compatibility mode.

If provided on a

POST request, the join HX NDI4 com- patibility mode will

be set.

GET URL: http://localhost:8080/api/join/hx_ndi4_compatibility_mode

POST URL: http://localhost:8080/api/join/hx_ndi4_compatibility_mode

EXAMPLE POST CONTENT: {"value":"false"}

Join HX Output

Get or set the join HX output. Will always return the latest join HX output value.

Key
Type
Description
Notes

value

String

(required) 0, 1, or 2 where 0 = NDI —

HX, 1 = NDI High Bandwidth, and 2

= Do Not Transcode

If provided on a

POST request, the join HX output

type will be set.

GET URL: http://localhost:8080/api/join/hx_output

POST URL: http://localhost:8080/api/join/hx_output

EXAMPLE POST CONTENT: {"value":"0"}

Join HX Quality

Get or set the join HX quality setting. Will always return the latest join HX quality setting value.

Key
Type
Description
Notes

value

String

(required) A value between 10 and 400

with 10 being the lowest quality.

If provided on a

POST request, the join HX quality set-

ting will be set.

GET URL: http://localhost:8080/api/join/hx_quality

POST URL: http://localhost:8080/api/join/hx_quality

EXAMPLE POST CONTENT: {"value":"100"}

Join IP Address

Get or set the join IP address. Will always return the latest join IP address.

Key
Type
Description
Notes

value

String

(required) IP Address in IPv4 format

’127.0.0.1’

If provided on a

POST request, the join IP address will

be set.

GET URL: http://localhost:8080/api/join/ip_address

POST URL: http://localhost:8080/api/join/ip_address

EXAMPLE POST CONTENT: {"value":"127.0.0.1"}

Join Port

Get or set the join port value. Will always return the latest join port value.

Key
Type
Description
Notes

value

String

(required) Port number in the range of

1-65535.

Port number in the

range of 1-65535. If provided on a POST request, the join port value will

be set.

GET URL: http://localhost:8080/api/join/port

POST URL: http://localhost:8080/api/join/port

EXAMPLE POST CONTENT: {"value":"5990"}

Join Set Encryption Key

Sets the join encryption key on POST.

Key
Type
Description
Notes

value

String

(required) The encryption key string

value.

Returns success on

setting the encryp- tion key. Does not return the cur- rent encryption key

value.

POST URL: http://localhost:8080/api/join/set_encryption_key

EXAMPLE POST CONTENT: {"value":"some encryption key"}

Join Start

Starts the join and returns if the operation succeeded or not.

POST URL: http://localhost:8080/api/join/start

EXAMPLE POST CONTENT: {}

Join Status

Gets the current join status message.

GET URL: http://localhost:8080/api/join/status_message

Join Stop

Stops the join if the join was running. Returns if the operation succeeded or not.

POST URL: http://localhost:8080/api/join/stop

EXAMPLE POST CONTENT: {}

Local Bridge Name

Get or set the local bridge name. Will always return the latest local bridge name.

Key
Type
Description
Notes

value

String

(required) Any string value.

If provided on a

POST request, the local bridge name will be set.

GET URL: http://localhost:8080/api/local/bridge_name

POST URL: http://localhost:8080/api/local/bridge_name

EXAMPLE POST CONTENT:{"value":"My Bridge Name"}

Local Groups

Get or set the local groups to share. Will always return the latest local groups.

Key
Type
Description
Notes

value

String

(required) A comma delineated list of

group names.

If provided on a

POST request, the local groups will be set.

GET URL: http://localhost:8080/api/local/groups

POST URL: http://localhost:8080/api/local/groups

EXAMPLE POST CONTENT: {"value":"public,test"}

Local HX GPU

Get or set the local HX GPU. Will always return the latest local HX GPU.

Key
Type
Description
Notes

value

String

(required) The name of the GPU. Use

’Auto’ to automatically select a GPU.

If provided on a

POST request, the local HX GPU will be set.

GET URL: http://localhost:8080/api/local/hx_gpu

POST URL: http://localhost:8080/api/local/hx_gpu

EXAMPLE POST CONTENT: {"value":"Auto"}

Local HX NDI4 Compatibility Mode

Get or set the local HX NDI4 compatibility mode. Will always return the latest local HX NDI4 compatibility mode value.

Key
Type
Description
Notes

value

String

(required) A boolean to enable or dis-

able NDI4 compatibility mode.

If provided on a

POST request, the local HX NDI4 compatibility mode will be set.

GET URL: http://localhost:8080/api/local/hx_ndi4_compatibility_mode

POST URL: http://localhost:8080/api/local/hx_ndi4_compatibility_mode

EXAMPLE POST CONTENT: {"value":"false"}

Local HX Output

Get or set the local HX output. Will always return the latest local HX output value.

Key
Type
Description
Notes

value

String

(required) 0, 1, or 2 where 0 = NDI —

HX, 1 = NDI High Bandwidth, and 2

= Do Not Transcode

If provided on a

POST request, the local HX output type will be set.

GET URL: http://localhost:8080/api/local/hx_output

POST URL: http://localhost:8080/api/local/hx_output

EXAMPLE POST CONTENT: {"value":"0"}

Local HX Quality

Get or set the local HX quality setting. Will always return the latest local HX quality setting value.

Key
Type
Description
Notes

value

String

(required) A value between 10 and 400

with 10 being the lowest quality.

If provided on a

POST request, the local HX quality setting will be set.

GET URL: http://localhost:8080/api/local/hx_quality

POST URL: http://localhost:8080/api/local/hx_quality

EXAMPLE POST CONTENT: {"value":"100"}

Local Send Groups

Get or set the send NDI Groups where locally the sources from this Bridge will appear in. Will always return the current local send groups.

Key

Type

Description

Notes

value

String

(required) A comma delineated list of

send groups names.

If provided on a

POST request, the local send groups will be set.

GET URL: http://localhost:8080/api/local/send_groups

POST URL: http://localhost:8080/api/local/send_groups

EXAMPLE POST CONTENT: {"value":"public,test group"}

Local Start

Starts the local bridge and returns if the operation succeeded or not.

POST URL: http://localhost:8080/api/local/start

EXAMPLE POST CONTENT: {"value":"Local started."}

Local Status

Gets the current local status message.

GET URL: http://localhost:8080/api/local/status_message

Local Stop

Stops the local if the local was running. Returns if the operation succeeded or not.

POST URL: http://localhost:8080/api/local/stop

EXAMPLE POST CONTENT: {"value":"Local stopped."}

Connection Test Start

Starts the connection test. You can use the connection test to help identify the best buffer setting for your chosen bitrate given your current network conditions. You must have at least one active connection to perform a connection test.

POST URL: http://localhost:8080/api/connection_test_start

Connection Test Start

Starts the connection test. You can use the connection test to help identify the best buffer setting for your chosen bitrate given your current network conditions. You must have at least one active connection to perform a connection test.

POST URL: http://localhost:8080/api/connection_test_start

Connection Test Stop

Stops the connection test. The response to this request will include the recommended buffer setting.

POST URL: http://localhost:8080/api/connection_test_stop

Connection Test Bitrate

Get or set the bitrate used in the connection test. Will always return the current bitrate value.

Key
Type
Description
Notes

value

String

(required) Value between 1 and the

maximum speed reported by the net- work adapters. When provided on a POST request, the Bridge Service con-

nection test bitrate will be set.

GET URL: http://localhost:8080/api/connection_test_bitrate

POST URL: http://localhost:8080/api/connection_test_bitrate

Run Mode

Gets the current running mode.

GET URL: http://localhost:8080/api/runmode

Uptime

Returns the timespan since the service started.

GET URL: http://localhost:8080/api/uptime

API GET URL
API POST URL and Instructions
API Properties Figure
API JSON Response
