Test Patterns
Streamline Connectivity and Calibration.
NDI Test Patterns is a tool designed to facilitate precise audio and video calibration on NDI-enabled devices within your network.
With a range of test patterns and audio tones, this tool ensures accurate color properties and optimal sound levels.
Accessing NDI Test Patterns
Install the NDI Core Suite and run NDI Test Patterns from the NDI launcher or your applications list.
Immediate NDI Signal Sharing
Upon launching, NDI Test Patterns will instantly share an NDI signal across your network, viewable on other NDI-enabled devices using software like Studio Monitor.
Viewing the NDI Signal

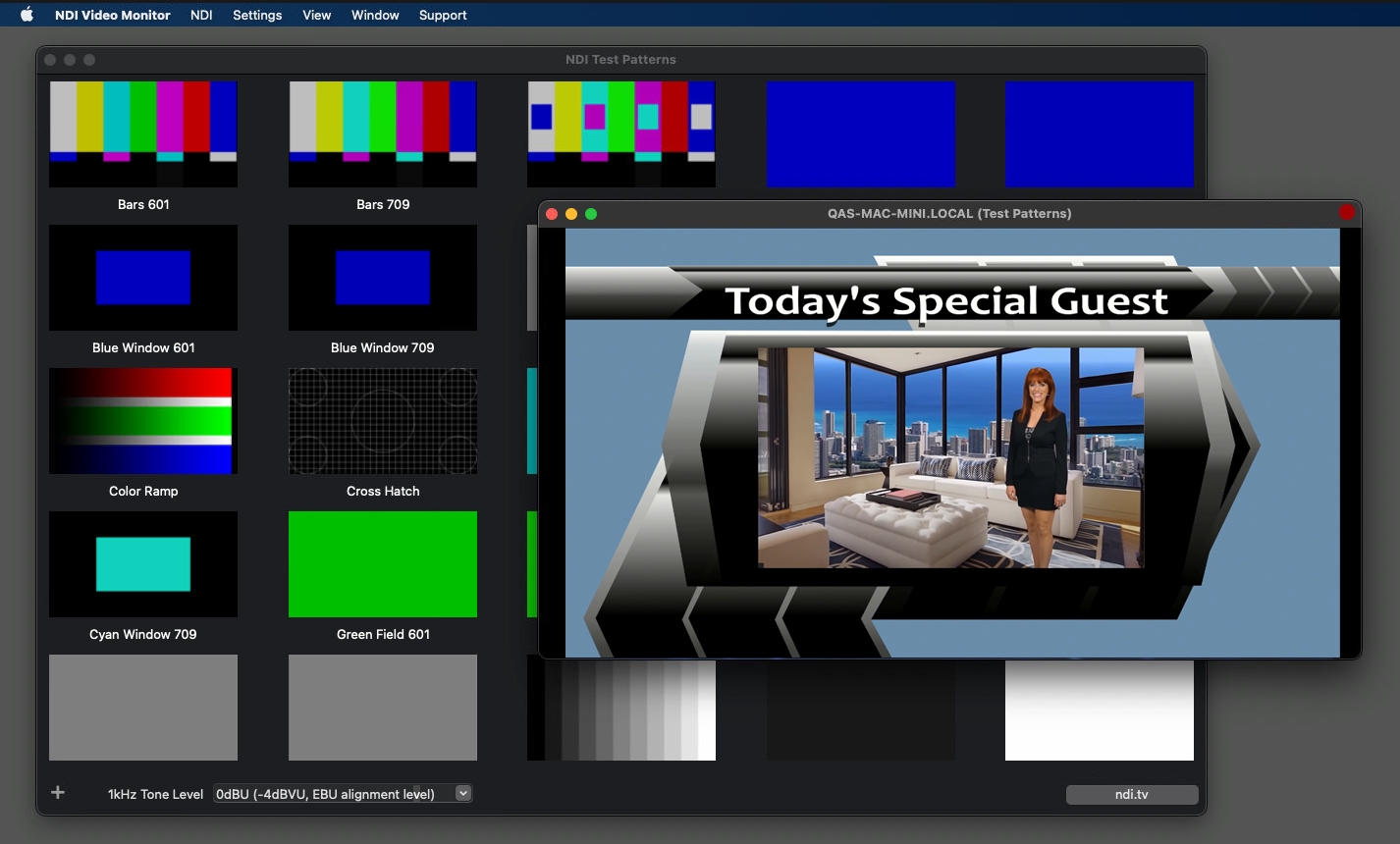

To receive the signal from NDI Test Patterns, right-click on the NDI Video Monitor tool, select the device's name, and choose Test Patterns.
Test Pattern Variety

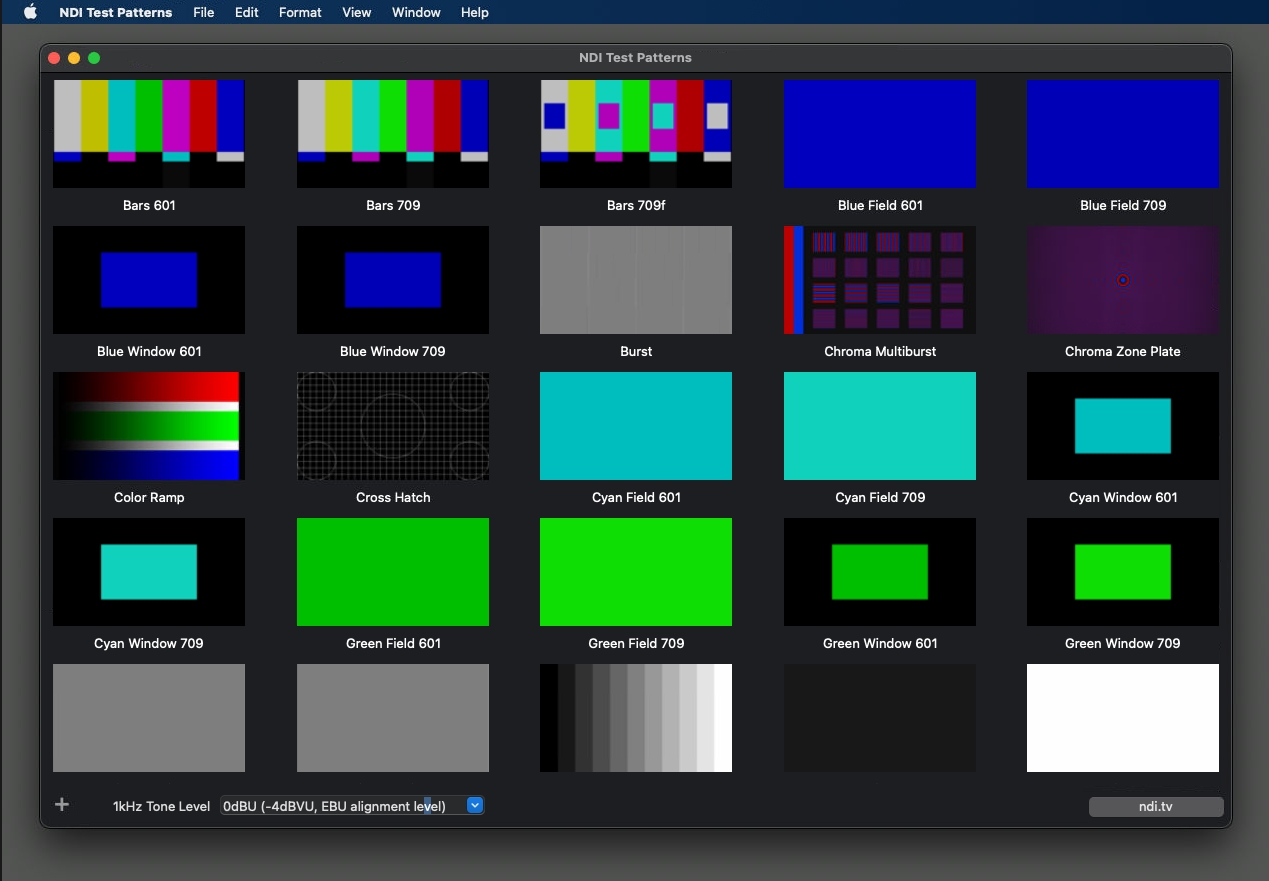

Explore a variety of test patterns by scrolling down the page and selecting the one that best suits your calibration needs.
Custom Image With Embedded Alpha
Click the plus button at the bottom of the screen to add custom images to the list of patterns in NDI Test Patterns.
NDI Test Patterns supports images with embedded , allowing you to load most 32-bit image file formats and use them as sources for overlays in your program.
Audio Calibration
Enable a one-kilohertz tone accompanying the NDI test pattern signal to test your audio equipment. Choose from various decibel levels to suit your audio calibration requirements.
